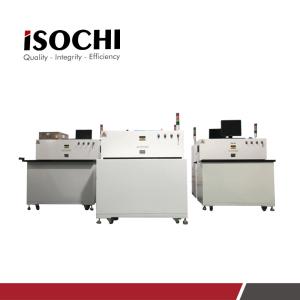

Multipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 White

Product Categories
Kunshan Sochi Electronics Co.,Ltd
Contact Now

Multipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 White

  • 1
  • 2
  • 3

Brand Name : SOCHI

Model Number : RYT-3000

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : $62999-65689/set

Payment Terms : T/T, Western Union,Paypel

Supply Ability : 10 Set/Sets per Month

Delivery Time : 25 days

Packaging Details : Standard wooden case or according to customers' requirement

Model No. : RYT-3000

Light tube type : Enclosed X-ray tube

Maximum tube voltage : 90kV

Maximum tube current : 0.15mA

Speed : 20 fps

Resolution : 1176*1104

Size of loading : 650mm*550mm（other sizes can be customized ）

Contact Now

Multipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 White

1.Application:

1. Semiconductor

2. Electronic Connector Module

3. Automotive electronics

4. BGA Inspection

5. PCB,FPC,PCBA

6. Die Castings

7. LED

8. Tyre

2.Technical Parameters:

Project Content
Equipment Model No. RYT-3000

X-RAY transmitting tube

(HAMAMATSU,Japan)

 Light tube type Enclosed X-ray tube
Maximum tube voltage 90kV
Maximum tube current 0.15mA
The focal spot size 5um
Amplification factor Geometric multiplier: 150 system multiplier: 1000
Detector Speed 20 fps
Resolution 1176*1104
Angle of inclination ±45° incline
Cabinet Specification Size of loading platform 650mm*550mm(other sizes can be customized )

3.Main Function:

Function Advantages
X-ray tube and detector can move along the Z axis Defects below 2um can be detected
Software sets voltage and current Convenient maintenance, long service life

It can control the speed of the object carrier in the X-Y direction

 Simple operation and short training time for operators
Editable detection program Suitable for mass detection
The maximum inclination of detector is 45° Semi-automatic identification of OK/NG products
Large navigation window, click the mouse to move the object table to the point High repeatability accuracy
Can accommodate all kinds of large size samples
Allows a unique view of the sample

4.Features:

1, Specific designed to meet differents customers's requirements...
2, 24 hours technical support by email and telephone service..
3, Warranty: 1year for free repair (Except consumables), provide free technical service support for all life.
4, Provide English manual or operating video.

5.More picture:

Multipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 WhiteMultipurpose PCB Inspection Machine 90kV Enclosed X Ray Tube 1176*1104 White
